Spider 2 AMR
A complete telemetry solution for automatic utility meter reading. Available in both wired and wireless configurations, Spider 2 AMR integrates with Modbus meters and pulse meters, with optional BMS integration. Enclosures, backup power, and modular expansion make AMR suited to large-scale building, campus, and industrial metering projects.
Key Features
Wired, Wireless, or Hybrid.
The wireless-enabled base station communicates with a network of wireless modules connected to your meters. The wired base station connects by cable to remote input modules, which connect to your meters. Hybrid combines both on one base station.
Scalable Meter Networks
Up to 320 wired inputs via remote input modules (32 inputs each); up to 400 wireless meter points with Halytech Wireless Transmitters.
All-in-One Outdoor-Ready Solution
Supplied in a weatherproof enclosure with internal battery backup and charger, for reliable long-term operation.
Automatic Data Reporting
Automatically generates CSV usage reports and delivers them by email or FTP - directly to you, with no intermediate servers or subscriptions.
Simple Licence-Free Setup
Web-browser configuration - no ongoing fees for core operation
BMS Integration (optional)
The optional Modbus TCP/IP server lets the unit serve its data to building management systems.
How It Works
Deploy & Install
Deploy the Spider 2 AMR unit in its outdoor enclosure. Mains powered, with internal battery backup.
Connect your meters
Connect pulse or Modbus meters using remote input modules (wired) or Halytech Wireless Transmitters.
Configure System
Use the built-in web interface to read and name your meters, set how often each meter is read, and set up reporting schedules.
Receive the Reports
Reports arrive automatically as CSV files at your nominated email address or server. The optional Modbus TCP/IP server lets you integrate with your BMS
Applications

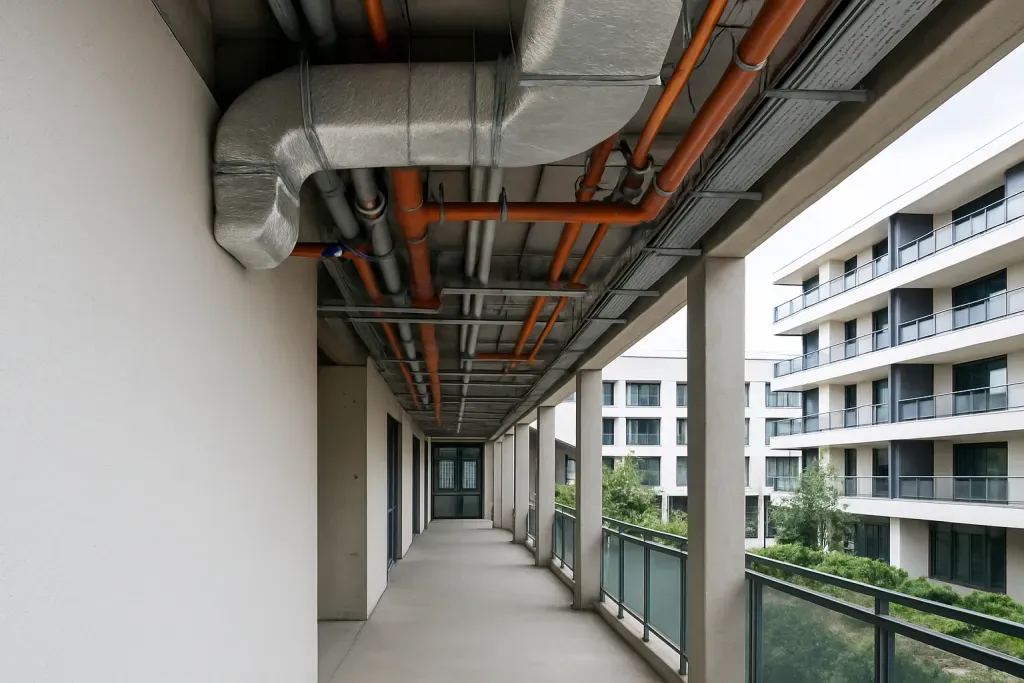

Collect meter readings across campuses, high-rise buildings, shopping centres, and industrial complexes. Report to billing systems, or integrate with your BMS.
Track water, gas*, and electricity use at a resolution that shows leaks, waste, and abnormal usage - before a small leak becomes a large bill.

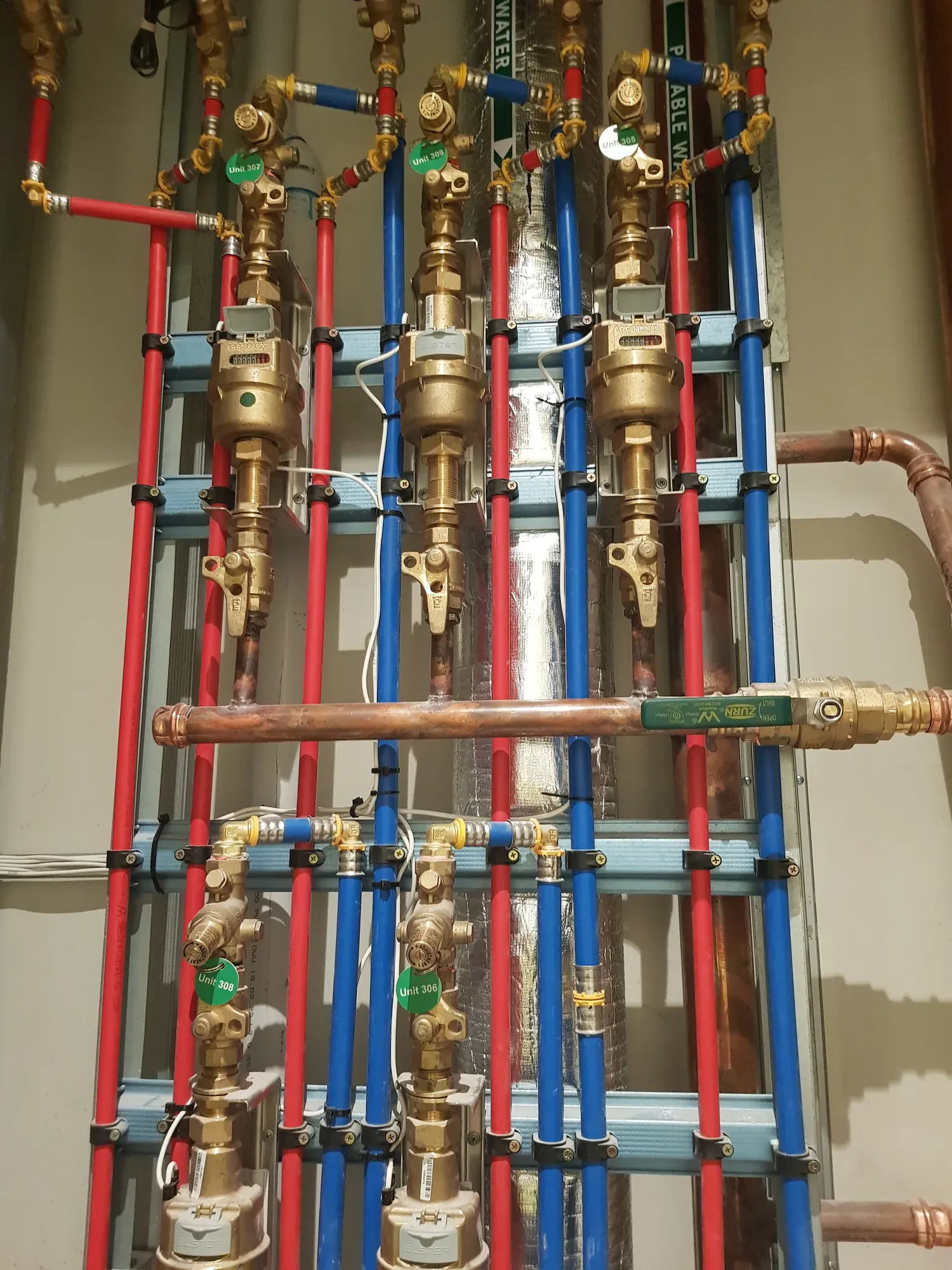

Continuous, verifiable metering data for NABERS Energy and Water rating cycles. Since July 2026, new Commonwealth office leases need a 6.0-star NABERS Energy rating.
* Gas metering installations require appropriate safety approvals and hazardous area requirements where applicable.
Simplify Your Meter Management
No complex software or specialised training required. Spider 2 AMR provides a reliable, web-based solution for logging and reporting, ready to integrate with your existing systems.
Inputs & Outputs
| Inputs | |
|---|---|
| Local Inputs | 8 x analogue or digital. Analogue: 0-2.5V connects direct. 4-20mA and 0-20mA connect via the 120 ohm resistors supplied with the unit. 0-5V and 0-10V need voltage divider resistors, supplied by the installer. Digital: voltage-free switch contact (switch / counter / utility meter). |
| Wired Expansion | Up to 320 wired inputs via remote input modules on RS-485 (32 inputs each) |
| Wireless Expansion | Up to 400 channels via Halytech Wireless Transmitters (wireless-enabled base station required). |
| Serial Interfaces | RS-485, for remote input modules and Modbus devices |
| Outputs | |
| Total | 8 |
| Number of Timers | 8 (1 per control) |
| Type | Voltage-free latching relay contacts |
| Contact Rating | 1A @ 30V AC or DC (resistive load). Rating applies to non-inductive loads. DC inductive loads need the supplied protection diode. Larger loads switch via an intermediate relay |
| Activation Methods | Browser interface, SMS, timer, alarm |
Communications
| Communication Options | |
|---|---|
| Ethernet | 10/100BASE-T |
| Wireless | 4G LTE Cat 1 |
| Wi-Fi | hotspot, for setup only |
| Antennas | 1 x external 4G whip (main), 1 x external 4G puck (diversity) |
| SIM | Nano SIM |
| Time Sync & Accuracy | |
| On-board RTC | Real-Time Clock |
| Automatic | NTP Synchronisation |
General
| General | |
|---|---|
| Enclosure | IP66-rated outdoor housing |
| Enclosure Dimensions | 400mm (H) x 300mm (W) x 150mm (D) |
| Base Unit Dimensions | 200mm (H) x 110mm (W) x 90mm (D) - the Spider 2 unit fitted inside the enclosure |
| Weight | Approx. 10-15 kg (including battery and power supply) |
| Temperature Range | -5C to +50C |
| Warranty | 12-month manufacturer's warranty, batteries excluded |
| Power & Battery | |
| Power Input | 16-24V DC, up to 3A (mains) |
| Battery | 12V 7.2Ah SLA, internal (pre-installed) |
| Backup | Automatic switchover during mains power loss |
| Logging & Memory | |
| Memory Type | Built-in Flash storage |
| Storage Capacity | 100,000 records |
| Report Format | CSV |
Accessories
Wireless Transmitters
Attach directly to utility meters and send readings wirelessly to the base station. Potted, outdoor, and indoor variants cover every meter location.
Spider Battery (HSP-013 / HSP-014)
A 12 V 7.2 Ah sealed lead acid backup battery for Spider installations.
Spider Power Supply (HSP-011 / HSP-012)
A double-insulated, adjustable DC power supply, designed for the DC power requirements of Spider installations.
