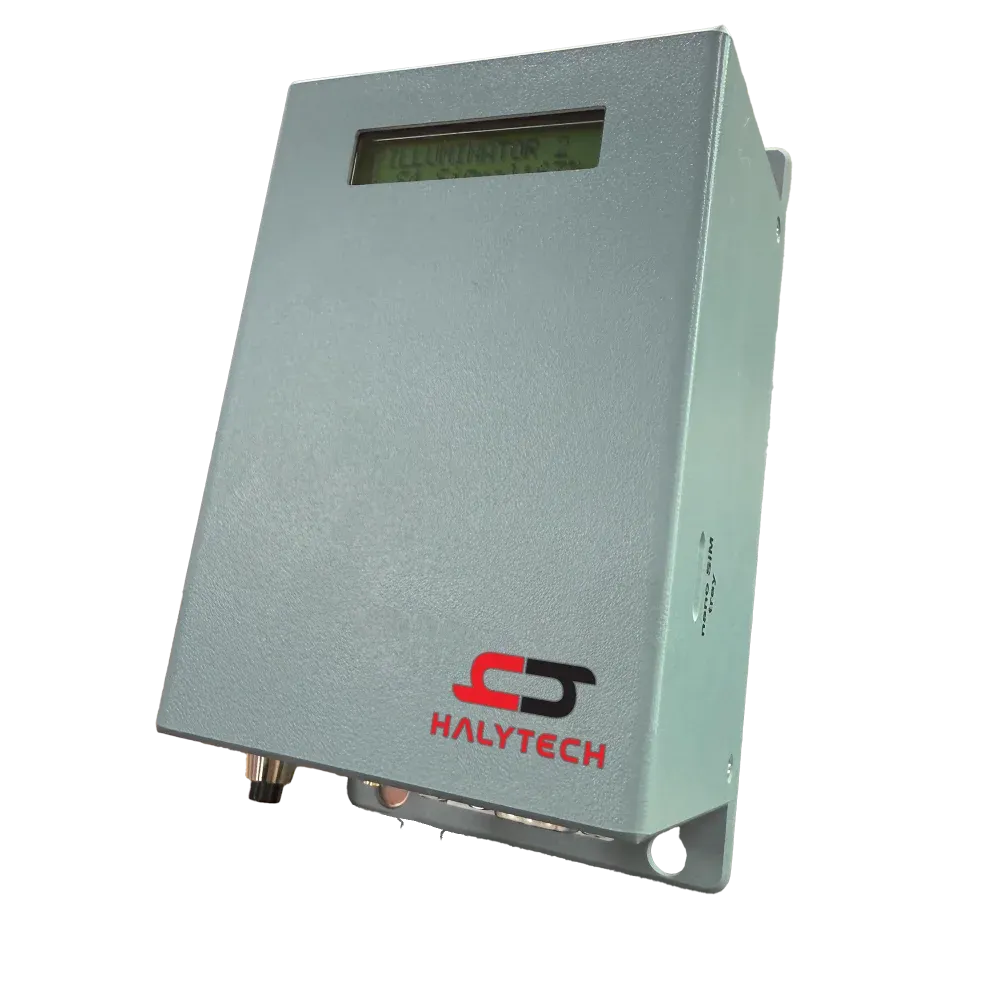

Illuminator 2
A standalone sports lighting controller for councils and clubs. Authorised users activate field lighting with secure PINs sent by SMS or entered on a keypad - no app, no subscription, no infrastructure replacement. Standard electrician installation.
Key Features
Self-Serve Access
Authorised users activate lighting with secure PINs sent by SMS or entered on an optional keypad - from any phone, any time.
Automatic Usage Logging
Every session is logged and emailed automatically as a CSV report. No manual record-keeping required.
Smart Curfew Timers
Configurable access windows prevent unauthorised or late-night use without any manual intervention.
Multi-Field Support
Up to 8 individually configurable outputs per device for separate fields, courts, or lighting circuits.
Works with Existing Infrastructure
Compatible with both HID and LED lighting systems. No rewiring - standard electrician installation.
Australian Made
Built locally and supported by over 25 years of field instrumentation experience.
How It Works
Mount on Board
The Illuminator 2 mounts directly onto your existing distribution board. Standard electrician installation - no new infrastructure required.
Configure via Browser
Set up users, PINs, schedules, and curfew timers from any web browser on your LAN or Wi-Fi. No software or licences required.
Automated Logging & Reports
Usage is recorded automatically and emailed as a CSV report on your chosen schedule - ready for billing or compliance.
Users Activate by PIN
Authorised users send their PIN via SMS or enter it on a keypad. Lighting activates and switches off automatically at session end.
Illuminator Central
A centralised dashboard for councils and facility managers. Remotely configure schedules, automate access windows, and view consolidated usage and billing reports across all your sites from one interface.
Simplify Your Sports Lighting
Contact us to discuss your facility's requirements, request a quote, or arrange a demonstration.
Inputs & Outputs
| Inputs | |
|---|---|
| Integrated Inputs | 8 × digital or analogue (voltage-free contacts, switches, pulse, 4–20 mA, 0–2.5 V, common ground) |
| System | Internal temperature, charger state, battery voltage |
| Outputs | |
| Total | 8 outputs |
| Type | Normally open relay contacts (1 A @ 30 V DC, resistive load) |
| Activation | SMS, keypad, timer, or browser interface |
Communications & Logging
| Communication Interfaces | |
|---|---|
| Ethernet | 10/100 base-T RJ-45 |
| Mobile | 4G (optional) |
| Wi-Fi | Optional |
| Antenna | Dual external |
| Logger | |
| Capacity | ~100,000 records |
| Storage | Battery backed RAM |
| Download Format | CSV file |
| Reporting | FTP, FTPS, SMTP (scheduled email) |
General
| Physical | |
|---|---|
| Size | 110mm (W) × 200mm (H) × 85mm (D) |
| Weight | ~800g |
| IP Rating | IP20 |
| Operating Temp | -5°C to +50°C |
| Warranty | 12-month manufacturer's warranty |
| Power | |
| Input | 16–30V DC |
| Input Current | <120mA |
| Battery | External 12V sealed lead-acid |
| Source | Mains charger or solar panel |
