microSpider2 Environmental
The microSpider2 Environmental is a compact, low-maintenance telemetry and data logging system, designed to withstand harsh conditions for long-term environmental monitoring. With broad sensor compatibility (SDI-12 & Modbus) and flexible data reporting, it enables reliable collection and transmission of critical environmental data.
Key Features
Broad Sensor Compatibility
Analogue and digital channels are native. SDI-12 and Modbus RS-485 come via the optional in-line Intelligent Interface, which plugs into I/O connector 1 - the 2 analogue and 2 digital inputs on that connector then become unavailable. This is the in-line part, not the DIN-rail module used by the microSpider2 Industrial, and the two are not interchangeable.
Compact & Efficient
Small footprint with an IP68 enclosure for installation in tight or exposed locations.
Low Power & Long Battery Life
Runs on a replaceable 7.2V lithium pack. Up to five years on one battery pack, or up to ten years with a second pack fitted.
Customisable Data Reporting
Create CSV reports at custom intervals and send via HTTP/HTTPS, FTP, email, or DNP3 (optional software licence).
Smart Calculations
Use virtual channels to create derived measurements for tasks like barometric compensation or flow correction without external processing.
Flexible Communications
LTE Cat-M1 with optional Wi-Fi (HLink dongle) or LAN (LANlink cable). Supports remote alarms via SMS or email.
How It Works
Deploy & Install
Mount in any environment and connect your sensors.
Connect & Configure
Use Wi-Fi or LAN to configure inputs, sensors, and reporting.
Monitor & Report
Collect and transmit sensor data at defined intervals.
Analyse & Optimise
Export CSV reports for decision-making and compliance.
Applications

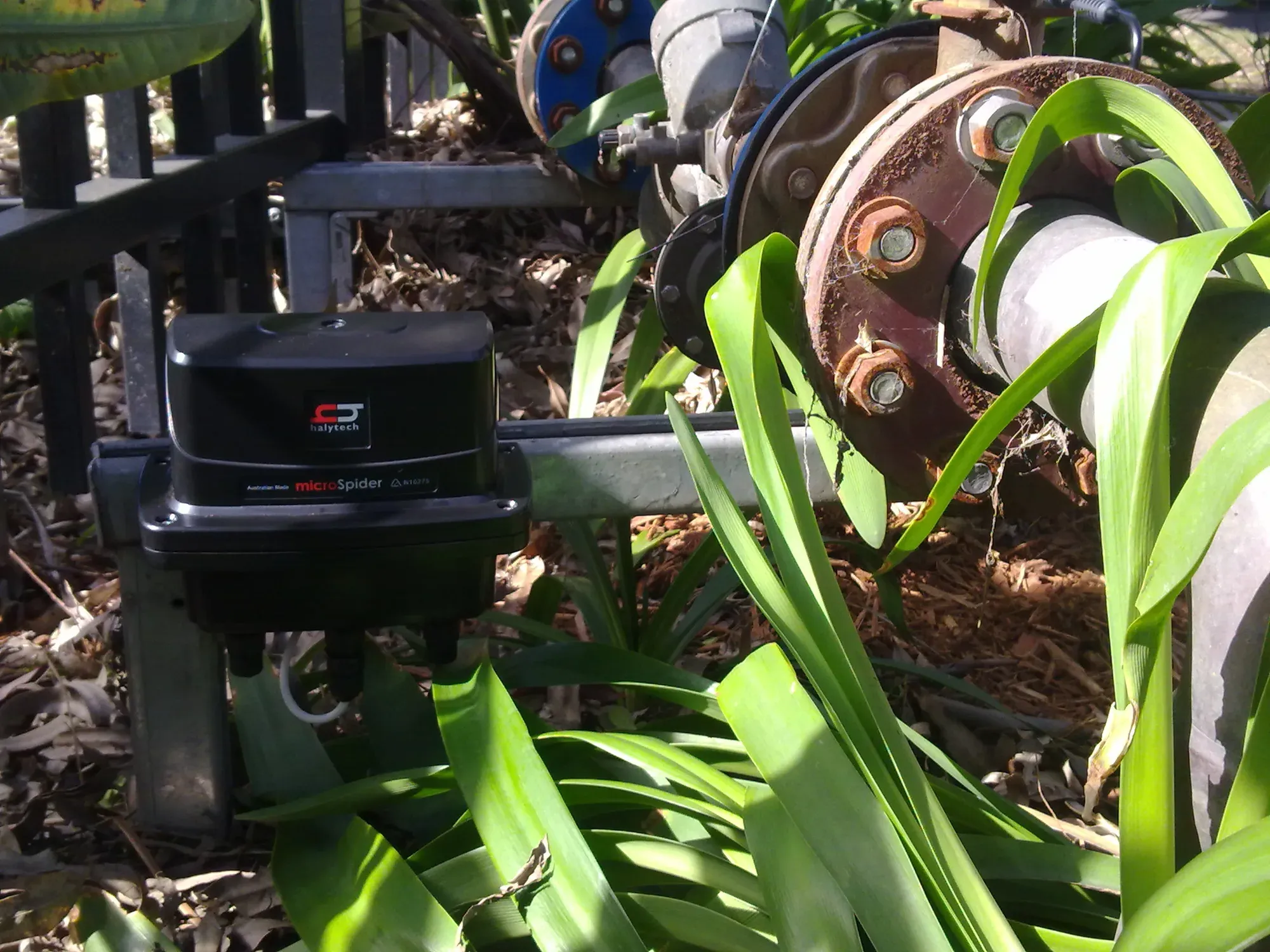

Water quality, weather, and hydrology monitoring in remote and harsh environments, with SDI-12 and Modbus support via the optional in-line Intelligent Interface.

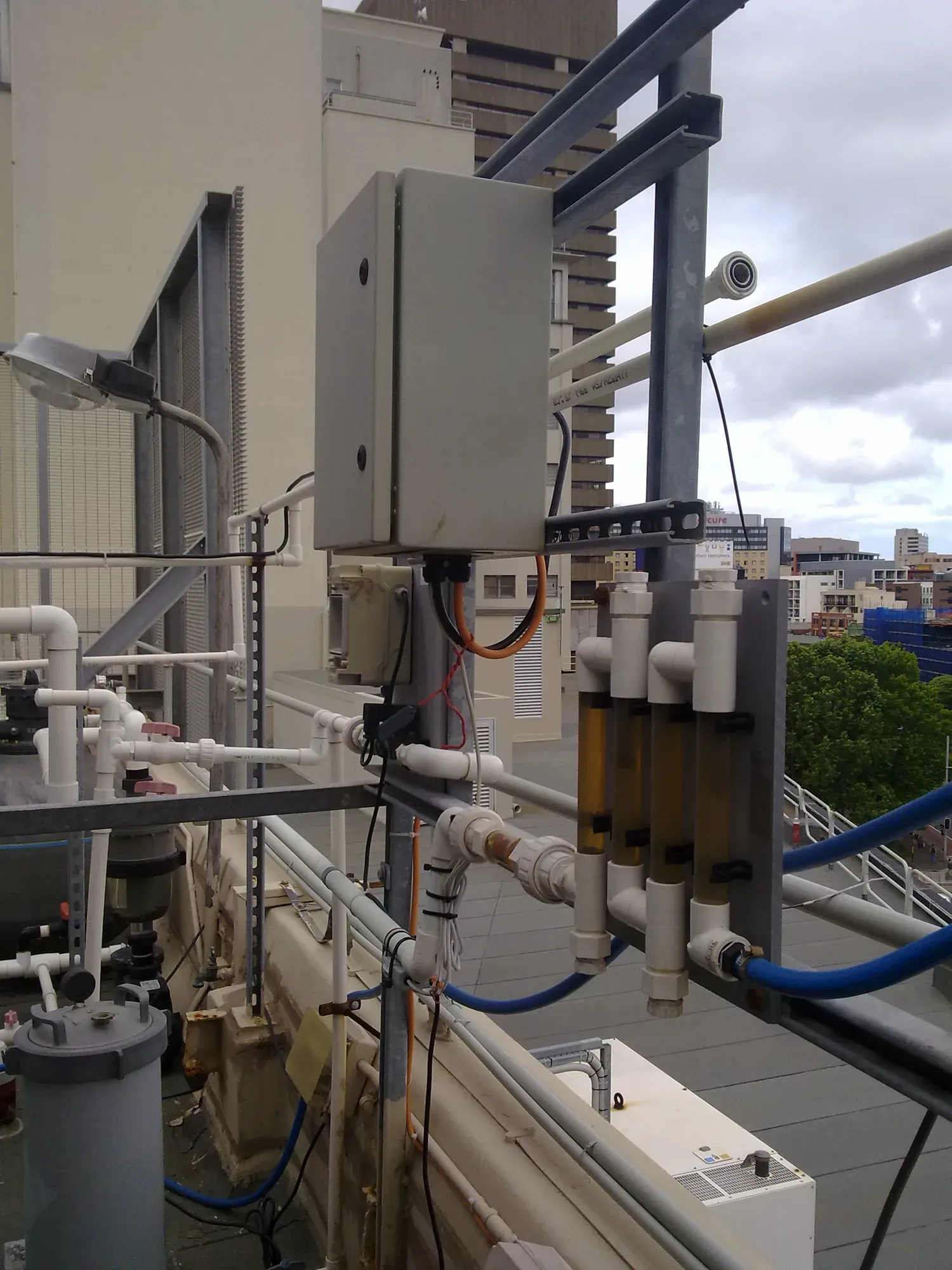

Long-term monitoring of treatment processes, flow rates, and water quality parameters with automated reporting and SMS alarms.
Irrigation monitoring with multi-channel logging, scheduled reporting and SMS alarms.
Simplify Your Environmental Monitoring
No complicated setups or unreliable readings. microSpider2 Environmental offers a small-footprint, fully sealed solution designed for accuracy and reliability.
Inputs & Outputs
| Inputs / Outputs | |
|---|---|
| Standard Inputs | 4 x Analogue (0-2.5V / 0-5V / 0-10V / 4-20mA); 4 x Digital, voltage-free switch contact (switch / event / counter); 6 x System Inputs (battery voltage x2, temperature, LAN voltage, external power, moisture). 0-5V, 0-10V and 0-20mA connect via the input conditioning components supplied with the unit |
| Channel Capacity | 20 configurable channels in total - any mix of analogue, digital, system, SDI-12, Modbus and calculated channels. One physical sensor can consume several channels |
| Virtual Channels | Calculated and logic-based channels, drawn from the 20-channel total |
| Outputs | 1 x Switched sensor power - regulated, current-limited 12V, max 1A, independent of battery state; 1 x Open collector (accessory control); 1 x Low-power sensor supply (3.3V or 5V) |
| Logging & Memory | |
| Memory Type | Built-in Flash storage |
| Storage Capacity | ~300,000 records |
| Report Format | CSV |
Communications
| Communication Options | |
|---|---|
| Mobile | 4G, or LTE Cat-M1 / NB-IoT (variant-dependent) |
| Wired | Ethernet (via LANlink cable) |
| WiFi | Supported via HLink dongle |
| Protocols | HTTP/HTTPS POST; FTP; Email; DNP3 (optional software licence) |
| Antenna Options | Internal (standard), External (optional) |
| Time Sync & Accuracy | |
| Clock | On-board Real-Time Clock (RTC) |
| Sync | Automatic NTP Synchronisation |
General
| General | |
|---|---|
| Enclosure | IP68-rated ABS (including connectors) |
| Size & Weight | 165mm (W) x 145mm (H) x 85mm (D). 800 g standard; 1030 g with the 14.4V battery pack |
| Temperature Range | -20C to +60C |
| Mounting | Integrated into enclosure |
| Warranty | 12-month manufacturer's warranty, batteries excluded |
| Power & Battery | |
| External Power | Optional 12-22V DC input. This extends battery life; it does not charge the battery, and the product has no charging capability |
| Battery Type | 7.2V Li-SOCl2 (Lithium-Thionyl Chloride) 13 Ah, replaceable |
| Optional Battery Packs | Second battery pack for up to 10 years field life; or a 14.4V pack for higher-voltage sensor loads |
| Battery Extension | Optional external power (12-22V DC) extends battery life |
| Expected Battery Life | Up to 5 years on one pack, or up to 10 years with a second pack fitted. Based on 1-hour logging intervals, daily reports, good signal, a self-powered sensor and one alarm per month. |
Accessories
HLink dongle (HHS-080)
Portable Wi-Fi interface for connecting a laptop, tablet or phone without an Ethernet port.
LANlink cable (HHS-013)
Y-cable giving simultaneous USB and Ethernet access for configuration and log downloads.
Intelligent Interface (HME-015)
In-line interface adding SDI-12 and Modbus RS-485 via an I/O connector.
